Cross Linked Polyethene Cables ( ht-XLPE Cales)

HT Xlpe cables, not in our product range,below data for technical information only.

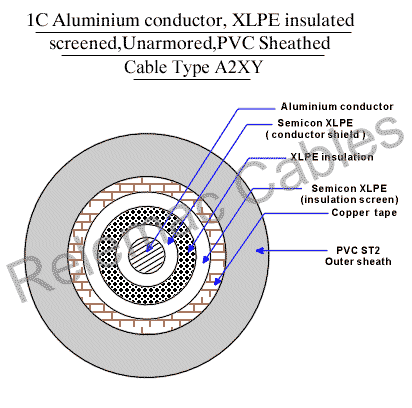

XLPE Cables >> Single Core Copper/Alumini m Conductor XLPE Insulated PVC Sheathed Cables Unarmoured A2XY

Product Type >> Screened

KV Range >> 11 / 11 kV

3.3 KV     l     3.8/6.6 kV    l     6.36/11 kV    l     12.7/22 kV    l     19/33 kV

Conductor Nominal Thickness Approx. Overall Dia. Of Cable Approx. Weight of Cable Approx. Shipping Wt. Of Cable (for Std. Drum Length) Max.D.C. Resistance at 20 deg.C Approx.
A. C. Resistance at 90 deg C		 Approx. Reactance at 50 Hz. Approx. Capacitance per phase Continuous Current Rating Short Circuit Rating for 1 Second
Nominal Area Min No of Wires Ins. O/Sh In Ground at 20degC In Air at 30degC
mm2 Nos. mm mm mm kg/km kgs. ohm/km ohm/km ohm/km U fd/km Amps. Amps. KA(rms)
35 6 5.5 2.0 26 630 535 0.8680 1.1100 0.1450 0.1590 124 151 3.29
50 6 5.5 2.0 27 700 570 0.6410 0.8220 0.1380 0.1750 146 181 4.70
70 12 5.5 2.0 29 800 620 0.4430 0.5680 0.1270 0.1960 179 226 6.58
95 15 5.5 2.0 30 930 735 0.3200 0.4110 0.1200 0.2240 213 275 8.93
120 15 5.5 2.2 32 1070 805 0.2530 0.3250 0.1170 0.2410 242 320 11.30
150 15 5.5 2.2 34 1180 860 0.2060 0.2650 0.1130 0.2570 271 363 14.10
185 30 5.5 2.2 35 1340 940 0.1640 0.2110 0.1100 0.2800 306 417 17.40
240 30 5.5 2.2 38 1560 1280 0.1250 0.1610 0.1050 0.3070 355 495 22.60
300 30 5.5 2.2 40 1780 1390 0.1000 0.1300 0.1010 0.3360 401 569 28.20
400 53 5.5 2.4 43 2140 1570 0.0778 0.1020 0.0987 0.3750 459 668 37.60
500 53 5.5 2.4 47 2540 1900 0.0605 0.0801 0.0950 0.4170 523 779 47.00
630 53 5.5 2.6 51 3150 2335 0.0469 0.0635 0.0922 0.4740 595 903 59.22
800 53 5.5 2.8 56 3930 1975 0.0367 0.0514 0.0896 0.5430 675 1059 75.20
1000 53 5.5 2.8 60 4560 3470 0.0291 0.0427 0.0870 0.5990 749 1198 94.00
