Cross Linked Polyethene Cables ( ht-XLPE Cales)
HT Xlpe cables, not in our product range,below data for technical information only.

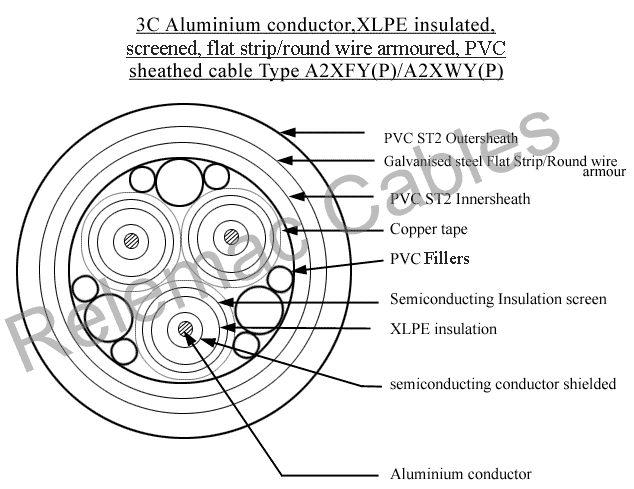

XLPE Cables >> Three Core Copper/Aluminium Conductor XLPE Insulated extended / taped PVC Inner Sheath Cables, Flat Strip Armoured A2XFY (P/T). Cables are available with both Taped(T) and extended PVC (P) inner sheath as per customer requirements.
Product Type >> screened
KV Range >> 19 / 33 kV
3.3 KV l 3.8/6.6 kV l 6.36/11 kV l 11/11 kV l 12.7/22 kV l 12.7/22 kV
| Conductor | Nominal Thickness of Ins. | Min. thick-ness of I/Sn | Nominal Dimension G.S. Strip armour | Min. Thickness of O/Sh. | Appx. Overall Dia. Of Cable | Appx. Weight of Cable | Appx. Shipping Wt. Of Cable (for Std. Drum length) | Max.D.C. Resistance at 20 ° C | Max.D.C. Resistance at 90 ° C | Appx. Reactance at 50Hz. | Appx. Capacitance per phase | Continuous Current Rating | Short Circuit Rating for 1 Second | ||
| Nominal Area | Min No of Wires | In Ground at 20°C | In Air at 30°C | ||||||||||||
| mm2 | Nos. | mm | mm | MmXmm | mm | mm | Kg/Km | Kg | Ohm/KM | Ohm/KM | Ohm/KM | U fd/Km | Amps | Amps | KA (rms) |
| 50 | 6 | 8.8 | 0.7 | 4x0.8 | 2.52 | 75 | 5830 | 5045 | 0.6410 | 0.8220 | 0.148 | 0.129 | 140 | 174 | 4.7 |
| 70 | 12 | 8.8 | 0.7 | 4x0.8 | 2.68 | 79 | 6480 | 5370 | 0.4430 | 0.5680 | 0.137 | 0.143 | 170 | 218 | 6.58 |
| 95 | 15 | 8.8 | 0.7 | 4x0.8 | 2.84 | 83 | 7200 | 5730 | 0.3200 | 0.4110 | 0.129 | 0.161 | 202 | 259 | 8.93 |
| 120 | 15 | 8.8 | 0.7 | 4x0.8 | 2.84 | 87 | 7830 | 6045 | 0.2530 | 0.3250 | 0.124 | 0.171 | 230 | 297 | 11.3 |
| 150 | 15 | 8.8 | 0.7 | 4x0.8 | 3.00 | 90 | 8550 | 5120 | 0.2060 | 0.2650 | 0.120 | 0.183 | 257 | 322 | 14.1 |
| 185 | 30 | 8.8 | 0.7 | 4x0.8 | 3.00 | 94 | 9300 | 5385 | 0.1640 | 0.2110 | 0.117 | 0.197 | 290 | 382 | 17.4 |
| 240 | 30 | 8.8 | 0.7 | 4x0.8 | 3.00 | 98 | 10370 | 5240 | 0.1250 | 0.1620 | 0.111 | 0.218 | 335 | 448 | 22.6 |
| 300 | 30 | 8.8 | 0.7 | 4x0.8 | 3.00 | 103 | 11440 | 5560 | 0.1000 | 0.1300 | 0.107 | 0.235 | 378 | 493 | 28.2 |
| 400 | 53 | 8.8 | 0.7 | 4x0.8 | 3.00 | 110 | 6030 | 6030 | 0.0778 | 0.1020 | 0.103 | 0.257 | 432 | 574 | 37.6 |
