Cross Linked Polyethene Cables ( ht-XLPE Cales)

HT Xlpe cables, not in our product range,below data for technical information only.

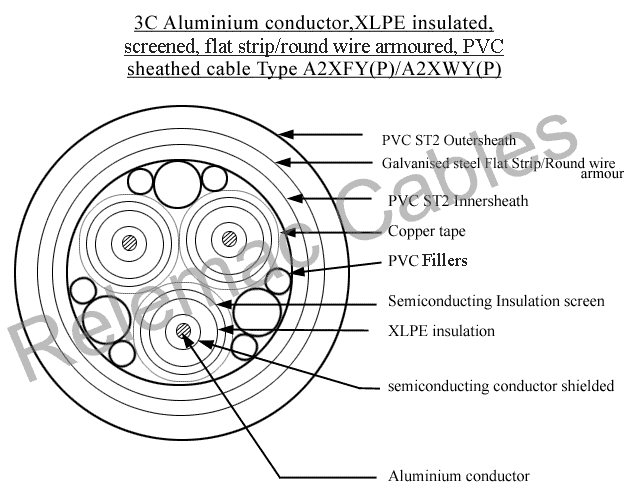

XLPE Cables >> Three Core Copper/Aluminium Conductor XLPE Insulated extended / taped PVC Inner Sheath Cables, Flat Strip Armoured A2XFY (P/T). Cables are available with both Taped(T) and extended PVC (P) inner sheath as per customer requirements.

Product Type >> Screened

KV Range >> 3.8 / 6.6 kV

3.3 KV     l     6.36/11 kV    l     11/11 kV    l     12.7/22 kV    l     12.7/22 kV    l     19/33 kV

Conductor Nominal Thickness of Ins. Min. thick-ness of I/Sn Nominal Dimension G.S. Strip armour Min. Thick-ness of O/Sh. Appx. Overall Dia. Of Cable Appx. Weight of Cable Appx. Shipping Wt. Of Cable (for Std. Drum length) Max.D.C. Resistance at 20 ° C Max.D.C. Resistance at 90 ° C Appx. Reactance at 50Hz. Appx. Capacitance per phase Continuous Current Rating Short Circuit Rating for 1 Second
Nominal Area Min No  of Wires In Ground at 20°C In Air at 30°C
mm2 Nos. mm mm MmXmm mm mm Kg/Km Kg Ohm/KM Ohm/KM Ohm/KM U fd/Km Amps Amps KA (rms)
35 6 2.8 0.4 4x0.8 1.72 43 2290 1615 0.868 1.11 0.116 0.259 119 133 3.29
50 6 2.8 0.5 4x0.8 1.72 46 2620 1810 0.641 0.822 0.11 0.29 140 159 4.7
70 12 2.8 0.5 4x0.8 1.88 50 3070 2295 0.443 0.568 0.102 0.33 172 199 6.58
95 15 2.8 0.5 4x0.8 1.88 54 3580 2800 0.32 0.411 0.0971 0.383 205 243 8.93
120 15 2.8 0.6 4x0.8 2.04 58 4130 3075 0.253 0.325 0.0935 0.415 233 279 11.3
150 15 2.8 0.6 4x0.8 2.2 61 4610 3495 0.206 0.265 0.091 0.45 261 319 14.1
185 30 2.8 0.6 4x0.8 2.2 65 5230 3805 0.164 0.211 0.0885 0.493 295 363 17.4
240 30 2.8 0.7 4x0.8 2.36 70 6140 4570 0.125 0.162 0.0865 0.558 341 429 22.6
300 30 3 0.7 4x0.8 2.52 76 7210 5735 0.1 0.13 0.0849 0.571 385 495 28.2
400 53 3.3 0.7 4x0.8 2.84 86 8950 6605 0.0778 0.102 0.0839 0.582 439 577 37.6
500 53 3.5 0.7 4x0.8 3 95 10870 5935 0.0605 0.081 0.0821 0.619 497 663 47
