Cross Linked Polyethene Cables ( ht-XLPE Cales)

HT Xlpe cables, not in our product range,below data for technical information only.

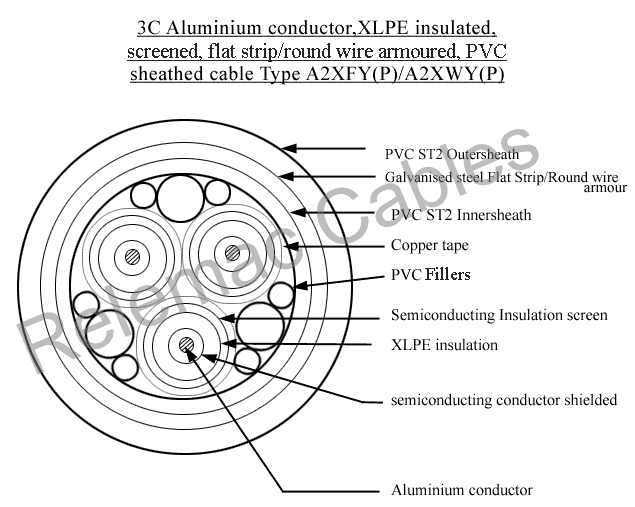

XLPE Cables >> Three Core Copper/Aluminium Conductor XLPE Insulated extended / taped PVC Inner Sheath Cables, Flat Strip Armoured A2XFY (P/T). Cables are available with both Taped(T) and extended PVC (P) inner sheath as per customer requirements.

Product Type >> screened

KV Range >> 11 / 11 kV

3.3 KV     l     3.8/6.6 kV    l     6.36/11 kV    l     12.7/22 kV    l     12.7/22 kV    l     19/33 kV

Conductor Nominal Thickness of Ins. Min. thick-ness of I/Sn Nominal Dimension G.S. Strip armour Min. Thick-
ness of O/Sh. 		Appx. Overall Dia. Of Cable Appx. Weight of Cable Appx. Shipping Wt. Of Cable (for Std. Drum length) Max.D.C. Resistance at 20 ° C Max.D.C. Resistance at 90 ° C Appx. Reactance at 50Hz. Appx. Capacitance per phase Continuous Current Rating Short Circuit Rating for 1 Second
Nominal Area Min No  of Wires In Ground at 20°C In Air at 30°C
mm2 Nos. mm mm MmXmm mm mm Kg/Km Kg Ohm/KM Ohm/KM Ohm/KM U fd/Km Amps Amps KA (rms)
35 6 5.5 0.5 4x0.8 2.04 56 3560 2790 0.8680 1.110 0.136 0.159 120 146 3.29
50 6 5.5 0.6  4x0.8 2.20 60 4000 3190 0.6410 0.8220 0.129 0.175 141 174 4.7
70 12 5.5 0.6 4x0.8 2.20 63 4510 3445 0.4430 0.5680 0.119 0.196 172 216 6.58
95 15 5.5 0.6 4x0.8 2.36 68 5130 4065 0.3200 0.4110 0.113 0.224 205 260 8.93
120 15 5.5 0.6 4x0.8 2.36 71 5670 4335 0.2530 0.3250 0.110 0.241 233 282 11.3
150 15 5.5 0.7 4x0.8 2.52 74 6220 4610 0.2060 0.2650 0.106 0.259 261 321 14.1
185 30 5.5 0.7 4x0.8 2.68 78 6970 5615 0.1640 0.2110 0.103 0.281 294 364 17.4
240 30 5.5 0.7 4x0.8 2.84 83 7990 6125 0.1250 0.1620 0.0985 0.314 340 429 22.6
300 30 5.5 0.7 4x0.8 3.00 89 9050 6200 0.1000 0.1300 0.0952 0.340 384 492 28.2
400 53 5.5 0.7 4x0.8 3.00 96 10570 5300 0.0778 0.1020 0.0929 0.375 439 575 37.6
500 53 5.5 0.7 4x0.8 3.00 103 12280 5815 0.0605 0.0810 0.089 0.417 497 661 47
