Cross Linked Polyethene Cables ( ht-XLPE Cales)

HT Xlpe cables, not in our product range,below data for technical information only.

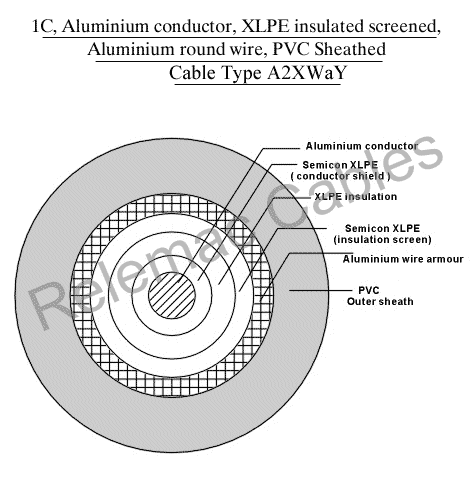

XLPE Cables >> Single Core Copper/Aluminium Conductor XLPE Insulated PVC Sheathed Cables Round Wire Armoured A2XWaY

Product Type >> screened

KV Range >> 3.8 / 6.6 kV

3.3 KV     l     6.36/11 kV    l     11/11 kV    l     12.7/22 kV    l     19/33 kV

Conductor Nominal Thickness of Ins. Nominal Dia. Of Al. Wire Ar. Nominal Dia. Of O/Sh. Approx. Overall Dia. Of Cable Approx. Weight of Cable Approx. Shipping Wt. Of Cable (for Std. Drum length) Max.D.C. Resistance at 20 deg. C Approx. A.C. Resistance at 90 deg C Approx. Reactance at 50Hz. Approx. Capacitance per phase Continuous Current Rating Short Circuit Rating for 1 Second
Nominal Area Min No  of Wires In Ground at 20degC In Air at 30degC
Mm2 Nos. mm mm mm mm Kg/Km Kg Ohm/KM Ohm/KM Ohm/KM U fd/Km Amps Amps KA (rms)
35 6 2.2 1.6 1.4 23 575 510 0.868 1.11 0.129 0.259 124 143 3.29
50 6 2.8 1.6 1.4 24 640 540 0.641 0.822 0.1293 0.29 146 171 4.7
70 12 2.8 1.6 1.4 25 750 595 0.443 0.568 0.1195 0.33 178 215 6.58
95 15 2.8 1.6 1.4 27 870 655 0.32 0.411 0.113 0.383 212 263 8.93
120 15 2.8 1.6 1.4 29 990 715 0.253 0.325 0.1085 0.415 241 304 11.3
150 15 2.8 1.6 1.56 30 1120 830 0.206 0.265 0.1062 0.447 271 349 14.1
185 30 2.8 2 1.56 32 1270 905 0.164 0.211 0.1025 0.49 304 404 17.4
240 30 2.8 2 1.56 35 1580 1060 0.125 0.161 0.1011 0.544 354 483 22.6
300 30 3 2 1.56 38 1840 1420 0.1 0.13 0.098 0.563 400 559 28.2
400 53 3.3 2 1.72 42 2270 1635 0.0778 0.102 0.0959 0.582 459 661 37.6
500 53 3.5 2 1.72 46 2710 1855 0.0605 0.08 0.0936 0.619 522 768 47
630 53 3.5 2 1.88 50 3320 2270 0.0469 0.0634 0.0919 0.708 593 898 59.22
800 53 3.5 2.5 2.04 56 4290 3155 0.0367 0.0513 0.0895 0.817 671 1060 75.2
1000 53 3.6 2.5 2.2 61 4990 3445 0.0291 0.0426 0.0875 0.88 744 1204 94
