Cross Linked Polyethene Cables ( ht-XLPE Cales)
HT Xlpe cables, not in our product range,below data for technical information only.

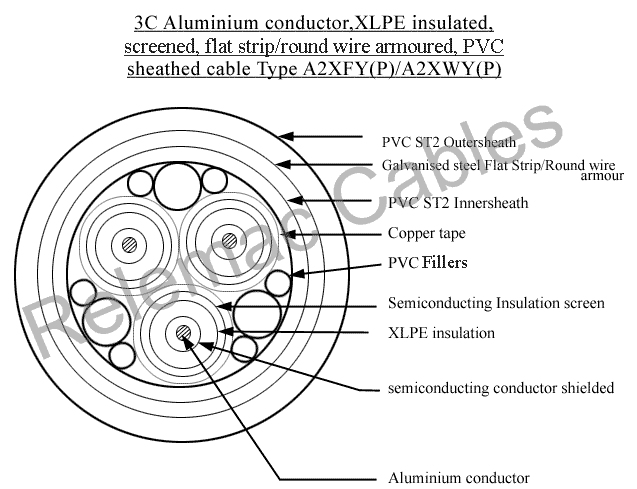

XLPE Cables >> Three Core Copper/Aluminium Conductor XLPE Insulated PVC Sheathed Cables Round Wire Armoured A2XWY P
Product Type >> screened
KV Range >> 12.7 / 22 kV
3.3 kV l 3.8/6.6 kV l 6.36/11 kV l 11/11 kV l 19/33 kV
Conductor | Nominal Thickness of Ins. | Min. thick-ness of I/Sn | Nominal Dimension G.S. Strip armour | Min. Thick-ness of O/Sh. | Appx. Overall Dia. Of Cable | Appx. Weight of Cable | Std. Drum Length | Appx. Shipping Wt. Of Cable (for Std. Drum length) | Max.D.C. Resistance at 20 deg. C | Max.D.C. Resistance at 90 deg. C | Appx. Reac-tance at 50Hz. | Appx. Capac-itance per phase | Continuous Current Rating | Short Circuit Rating for 1 Sec | ||
Nominal Area | Min No of Wires | In Ground at 20degC | In Air at 30 degC | |||||||||||||
mm2 | Nos. | mm | mm | mm X mm | mm | mm | Kg/Km | Mtrs. | Kg | Ohm/ KM | Ohm/ KM | Ohm/ KM | U fd/Km | Amps | Amps | KA (rms) |
35 | 6 | 5.5 | 0.6 | 2.5 | 2.2 | 62 | 5610 | 500 | 3755 | 0.868 | 1.11 | 0.136 | 0.159 | 118 | 145 | 3.29 |
50 | 6 | 5.5 | 0.6 | 2.5 | 2.2 | 65 | 6090 | 500 | 3995 | 0.641 | 0.822 | 0.129 | 0.175 | 139 | 172 | 4.7 |
70 | 12 | 5.5 | 0.6 | 2.5 | 2.36 | 69 | 6700 | 500 | 4520 | 0.443 | 0.568 | 0.119 | 0.196 | 170 | 213 | 6.58 |
95 | 15 | 5.5 | 0.6 | 3.15 | 2.52 | 74 | 8320 | 500 | 5660 | 0.32 | 0.411 | 0.113 | 0.224 | 202 | 246 | 8.93 |
120 | 15 | 5.5 | 0.7 | 3.15 | 2.52 | 78 | 9080 | 500 | 6670 | 0.253 | 0.325 | 0.11 | 0.241 | 229 | 282 | 11.3 |
150 | 15 | 5.5 | 0.7 | 3.15 | 2.68 | 81 | 9660 | 500 | 6960 | 0.206 | 0.265 | 0.106 | 0.259 | 257 | 321 | 14.1 |
185 | 30 | 5.5 | 0.7 | 3.15 | 2.84 | 85 | 10630 | 500 | 7445 | 0.164 | 0.211 | 0.103 | 0.281 | 289 | 365 | 17.4 |
240 | 30 | 5.5 | 0.7 | 3.15 | 3 | 92 | 13190 | 350 | 6745 | 0.125 | 0.162 | 0.0985 | 0.314 | 335 | 429 | 22.6 |
300 | 30 | 5.5 | 0.7 | 4 | 3 | 97 | 14610 | 300 | 6510 | 0.1 | 0.13 | 0.0952 | 0.34 | 378 | 492 | 28.2 |
400 | 53 | 5.5 | 0.7 | 4 | 3 | 104 | 16590 | 300 | 7110 | 0.0778 | 0.102 | 0.0929 | 0.375 | 432 | 575 | 37.6 |
500 | 53 | 5.5 | 0.7 | 4 | 3 | 112 | 19090 | 300 | 7880 | 0.0605 | 0.081 | 0.089 | 0.417 | 489 | 661 | 47 |
