Cross Linked Polyethene Cables ( ht-XLPE Cales)

HT Xlpe cables, not in our product range,below data for technical information only.

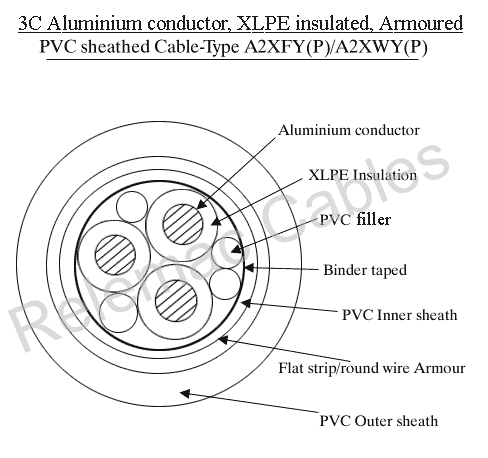

XLPE Cables >> Three Core Copper/Aluminium Conductor XLPE Insulated PVC Sheathed Cables Round Wire Armoured A2XWY P

Product Type >> Unscreened

KV Range >> 3.3 KV

3.8/6.6 kV    l     6.36/11 kV    l     11/11 kV    l     12.7/22 kV    l     19/33 kV

Conductor Nominal Thickness of Ins. Min. thick-ness of I/Sn Nominal Dimension G.S. Strip armour Min. Thick-
ness of O/Sh. 		Appx. Overall Dia. Of Cable Appx. Weight of Cable Std. Drum Length Appx. Shipping Wt. Of Cable (for Std. Drum length) Max.D.C. Resistance at 20 ° C Max.D.C. Resistance at 90 ° C Appx. Reactance at 50Hz. Appx. Capacitance per phase Continuous Current Rating Short Circuit Rating for 1 Sec
Nominal Area Min No  of Wires In Ground at 20°C In Air at 30°C
mm2 Nos. mm mm mm X mm mm mm Kg/Km Mtrs. Kg Ohm/ KM Ohm/ KM Ohm/ KM U fd/Km Amps Amps KA (rms)
50 6 2.2 0.4 2 1.56 37 2175 500 1590 0.641 0.822 0.091 0.294 142 163 4.7
70 12 2.2 0.4 2 1.56 40 2545 500 1775 0.443 0.568 0.084 0.341 172 197 6.58
95 15 2.2 0.4 2 1.72 44 2980 500 1990 0.32 0.411 0.081 0.389 206 241 8.93
120 15 2.2 0.5 2 1.88 46 3380 500 2190 0.253 0.325 0.079 0.427 234 278 11.3
150 15 2.2 0.5 2.5 2.04 50 4240 500 2730 0.206 0.265 0.077 0.466 263 319 14.1
185 30 2.2 0.5 2.5 2.04 53 4750 500 3385 0.164 0.211 0.076 0.512 296 363 17.4
240 30 2.2 0.6 2.5 2.2 58 5655 500 3840 0.125 0.162 0.074 0.574 342 430 22.6
300 30 2.2 0.6 2.5 2.36 62 6530 500 4215 0.1 0.13 0.072 0.635 387 498 28.2
400 53 2.2 0.7 3.15 2.68 70 8560 500 5450 0.0778 0.102 0.071 0.704 441 582 37.6
500 53 2.2 0.7 3.15 2.84 77 10170 500 7215 0.0605 0.081 0.708 0.724 493 669 47
