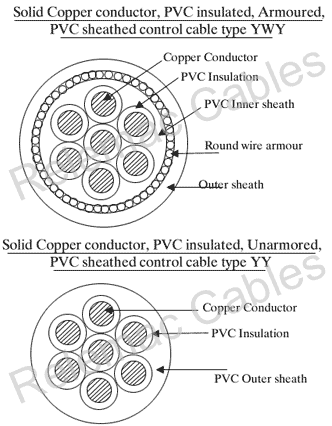

PVC Cables >> 650 1100V Solid Copper Conductor PVC Insulated and Sheathed Unarmoured AYY Armoured AYFY AYWY

Product Type >> Control Cables

No. of Cores	Nominal Area of Cond'tor Sq.mm	Nominal Thickness of PVC ins. mm	Unarmoured		Armoured			Max.D.C. Conductor Resistance at 20°C Ohm/KM	A.C.Current Rating
			Appx Overall Dia. mm	Appx. wt Kg/km	Nominal Armour Size mm W F	Appx Overall Dia. mm	Appx wt Kg/km		In Air at 40°C		In Ground at 30°C
			Appx Overall Dia. mm	Appx. wt Kg/km	Nominal Armour Size mm W F	Appx Overall Dia. mm	Appx wt Kg/km		PVC insulation Amps	HRPVC insulation Amps	PVC insulation Amps	HRPVC insulation Amps
2	1.5	0.8	12	150	1.4	15	440	12.1	20	24	23	26
3	1.5	0.8	12	175	1.4	16	480	12.1	17	20	21	24
4	1.5	0.8	13	200	1.4	16	540	12.1	17	20	21	24
5	1.5	0.8	13	240	1.4	17	600	12.1	17	20	21	24
6	1.5	0.8	14	275	1.4	18	670	12.1	12	14	14	16
7	1.5	0.8	14	286	1.4	18	680	12.1	12	14	14	16
8	1.5	0.8	15	330	1.4	19	750	12.1	12	14	13	15
9	1.5	0.8	16	375	1.4	20	820	12.1	11	13	13	15
10	1.5	0.8	17	390	1.4	21	870	12.1	11	13	12	14
12	1.5	0.8	18	434	4X0.8	21	750	12.1	10	12	11	13
14	1.5	0.8	19	490	4X0.8	22	830	12.1	9	11	11	13
16	1.5	0.8	20	540	4X0.8	23	910	12.1	9	11	10	11
19	1.5	0.8	21	630	4X0.8	24	980	12.1	8	10	10	11
24	1.5	0.8	24	775	4X0.8	27	1210	12.1	8	10	9	10
27	1.5	0.8	24	845	4X0.8	27	1280	12.1	7	8	8	9
30	1.5	0.8	25	920	4X0.8	28	1350	12.1	7	8	8	9
33	1.5	0.8	26	990	4X0.8	29	1450	12.1	7	8	8	9
37	1.5	0.8	27	1090	4X0.8	30	1560	12.1	6	7	7	8
44	1.5	0.8	30	1275	4X0.8	33	1850	12.1	6	7	7	8
48	1.5	0.8	31	1390	4X0.8	34	1930	12.1	6	7	7	8
52	1.5	0.8	32	1500	4X0.8	35	2080	12.1	6	7	7	8
56	1.5	0.8	33	1600	4X0.8	36	2210	12.1	6	7	7	8
61	1.5	0.8	34	1710	4X0.8	37	2320	12.1	6	7	7	8
2	2.5	0.9	13	190	1.4	16	500	7.41	27	32	32	36
3	2.5	0.9	13	230	1.4	17	550	7.41	24	29	27	31
4	2.5	0.9	14	275	1.4	18	630	7.41	24	29	27	31
5	2.5	0.9	15	320	1.4	19	700	7.41	24	29	27	31
6	2.5	0.9	16	375	1.4	20	790	7.41	17	20	20	23
7	2.5	0.9	16	390	1.4	20	800	7.41	17	20	20	23
8	2.5	0.9	17	460	4X0.8	20	830	7.41	16	19	19	22
9	2.5	0.9	18	520	4X0.8	21	850	7.41	15	18	18	21
10	2.5	0.9	20	540	4X0.8	23	900	7.41	14	17	17	19
12	2.5	0.9	21	630	4X0.8	23	970	7.41	14	17	16	18
14	2.5	0.9	22	710	4X0.8	24	1100	7.41	13	16	15	17
16	2.5	0.9	23	790	4X0.8	25	1200	7.41	12	14	15	17
19	2.5	0.9	24	895	4X0.8	27	1300	7.41	11	13	14	16
24	2.5	0.9	28	1110	4X0.8	30	1600	7.41	10	12	12	14
27	2.5	0.9	28	1210	4X0.8	31	1720	7.41	10	12	12	14
30	2.5	0.9	29	1325	4X0.8	32	1850	7.41	9	11	11	13
33	2.5	0.9	30	1440	4X0.8	33	2000	7.41	9	11	11	13
37	2.5	0.9	32	1620	4X0.8	35	2200	7.41	9	11	10	11
44	2.5	0.9	36	1900	4X0.8	38	2550	7.41	8	10	10	11
48	2.5	0.9	36	2040	4X0.8	39	2700	7.41	8	10	10	11
52	2.5	0.9	37	2190	4X0.8	40	2850	7.41	8	10	10	11
56	2.5	0.9	38	2335	4X0.8	41	3050	7.41	8	10	10	11
61	2.5	0.9	39	2500	4X0.8	42	3200	7.41	8	10	10	11
