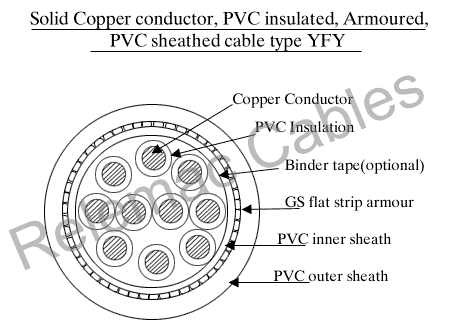

PVC Cables >> 650 1100V Copper Conductor PVC Insulated and Sheathed Unarmoured YY and Armoured YWY YFY
Product Type >> 4 Core Cables
| No. of Cores | Nominal Area of Cond'tor Sq.mm | Nominal Thickness of PVC ins. mm | Unarmoured | Armoured | Max.D.C. Conductor Resistance at 20°C Ohm/KM | A.C.Current Rating | ||||||
| Appx Overall Dia. mm | Appx. wt Kg/km | Nominal Armour Size mm W F | Appx Overall Dia. mm | Appx wt Kg/km | In Air at 40°C | In Ground at 30°C | ||||||
| PVC insulation Amps | HRPVC insulation Amps | PVC insulation Amps | HRPVC insulation Amps | |||||||||
| 4 Core | 4 | 1 | 16 | 370 | 1.4 | 19 | 790 | 4.61 | 30 | 36 | 36 | 41 |
| 6 | 1 | 17 | 470 | 1.4 | 21 | 930 | 3.08 | 39 | 47 | 45 | 51 | |
| 10 | 1 | 20 | 720 | 4X0.8 | 23 | 1040 | 1.83 | 52 | 62 | 60 | 68 | |
| 16 | 1 | 23 | 1000 | 4X0.8 | 26 | 1380 | 1.15 | 66 | 79 | 77 | 88 | |
