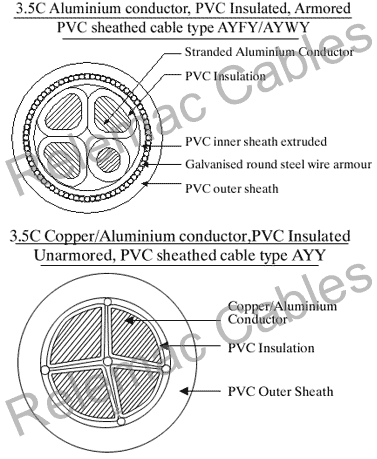

PVC Cables >> 650 1100V 3.5 Core Aluminium Conductor PVC Insulated and Sheathed Unarmoured AYY Armoured AYFY AYWY
Product Type >> AYY/AYFY/AYWY
| Nominal Area of Cond'tor Sq.mm | Nominal Thickness of PVC ins. mm | Unarmoured | Armoured | Max.D.C. Conductor Resistance at 20°C Ohm/KM | A.C.Current Rating | ||||||
| Appx Overall Dia. mm | Appx. wt Kg/km | Nominal Armour Size mm W F | Appx Overall Dia. mm | Appx wt Kg/km | In Air at 40°C | In Ground at 30°C | |||||
| PVC insulation Amps | HRPVC insulation Amps | PVC insulation Amps | HRPVC insulation Amps | ||||||||
| 25 | 1.2 | 25 | 675 | 4X0.8 | 26 | 970 | 1.200 | 70 | 84 | 76 | 87 |
| 35 | 1.2 | 27 | 800 | 4X0.8 | 28 | 1140 | 0.868 | 86 | 103 | 92 | 105 |
| 50 | 1.4 | 31 | 1050 | 4X0.8 | 33 | 1450 | 0.641 | 105 | 126 | 110 | 125 |
| 70 | 1.4 | 36 | 1360 | 4X0.8 | 37 | 1810 | 0.443 | 130 | 156 | 135 | 154 |
| 95 | 1.6 | 41 | 1760 | 4X0.8 | 42 | 2270 | 0.320 | 155 | 186 | 165 | 188 |
| 120 | 1.6 | 42 | 2110 | 4X0.8 | 45 | 2580 | 0.253 | 180 | 216 | 185 | 211 |
| 150 | 1.8 | 45 | 2460 | 4X0.8 | 47 | 3030 | 0.206 | 205 | 246 | 210 | 239 |
| 185 | 2.0 | 50 | 3080 | 4X0.8 | 51 | 3710 | 0.164 | 240 | 288 | 235 | 268 |
| 240 | 2.2 | 57 | 3960 | 4X0.8 | 58 | 4615 | 0.125 | 280 | 336 | 275 | 314 |
| 300 | 2.4 | 63 | 4840 | 4X0.8 | 64 | 5640 | 0.100 | 315 | 378 | 305 | 348 |
| 400 | 2.6 | 70 | 6050 | 4X0.8 | 71 | 6980 | 0.0778 | 375 | 450 | 335 | 382 |
