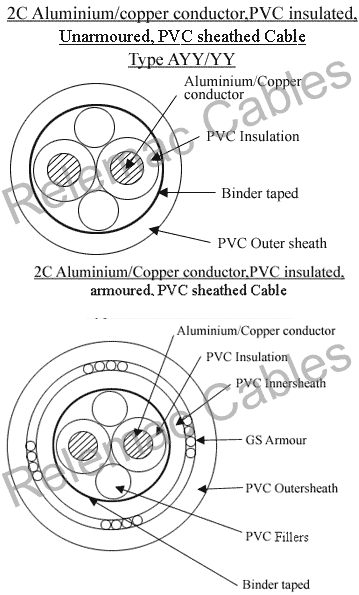

PVC Cables >> 650 1100V 2 Core Aluminium Conductor PVC Insulated and Sheathed Unarmoured AYY and Armoured AYFY AYW
Product Type >> AYY/AYFY/AYWY
| Nominal Area of Cond'tor Sq.mm | Unarmoured | Armoured | Max.D.C. Conductor Resistance at 20°C Ohm/KM | A.C.Current Rating | ||||||||
| Nominal Thickness of PVC ins. mm | Appx Overall Dia. mm | Appx. wt Kg/km | Nominal Thickness of PVC ins. Mm | Nominal Armour Size mm W F | Appx Overall Dia. mm | Appx wt Kg/km | In Air at 40°C | In Air at 40°C | ||||
PVC insulation Amps
|
HRPVC insulation Amps
|
PVC insulation Amps
|
HRPVC insulation Amps
|
|||||||||
| 4 | 1.0 | 14 | 200 | 1.0 | 1.4 | 18 | 580 | 7.410 | 27 | 32 | 32 | 36 |
| 6 | 1.0 | 15 | 240 | 1.0 | 1.4 | 19 | 660 | 4.610 | 35 | 42 | 40 | 46 |
| 10 | 1.0 | 17 | 280 | 1.0 | 1.4 | 21 | 740 | 3.080 | 47 | 56 | 55 | 63 |
| 16 | 1.0 | 20 | 400 | 1.0 | 4X0.8 | 23 | 770 | 1.910 | 59 | 71 | 70 | 80 |
| 25 | 1.2 | 20 | 430 | 1.2 | 4X0.8 | 21 | 680 | 1.200 | 78 | 94 | 90 | 103 |
| 35 | 1.2 | 22 | 50 | 1.2 | 4X0.8 | 23 | 780 | 0.868 | 99 | 119 | 110 | 125 |
| 50 | 1.4 | 25 | 650 | 1.4 | 4X0.8 | 26 | 960 | 0.641 | 125 | 150 | 135 | 154 |
| 70 | 1.4 | 28 | 820 | 1.4 | 4X0.8 | 29 | 1180 | 0.443 | 150 | 180 | 160 | 182 |
| 95 | 1.6 | 32 | 1100 | 1.6 | 4X0.8 | 33 | 1500 | 0.320 | 185 | 222 | 190 | 217 |
| 120 | 1.6 | 33 | 1260 | 1.6 | 4X0.8 | 34 | 1680 | 0.253 | 210 | 252 | 210 | 239 |
| 150 | 1.8 | 36 | 1530 | 1.8 | 4X0.8 | 38 | 1990 | 0.206 | 240 | 288 | 240 | 274 |
| 185 | 2.0 | 40 | 1860 | 2.0 | 4X0.8 | 41 | 2380 | 0.164 | 275 | 330 | 275 | 314 |
| 240 | 2.2 | 45 | 2370 | 2.2 | 4X0.8 | 46 | 2960 | 0.125 | 325 | 390 | 320 | 365 |
| 300 | 2.4 | 50 | 2920 | 2.4 | 4X0.8 | 51 | 3610 | 0.100 | 365 | 438 | 355 | 405 |
| 400 | 2.6 | 56 | 3700 | 2.6 | 4X0.8 | 57 | 4410 | 0.0778 | 420 | 504 | 385 | 439 |
